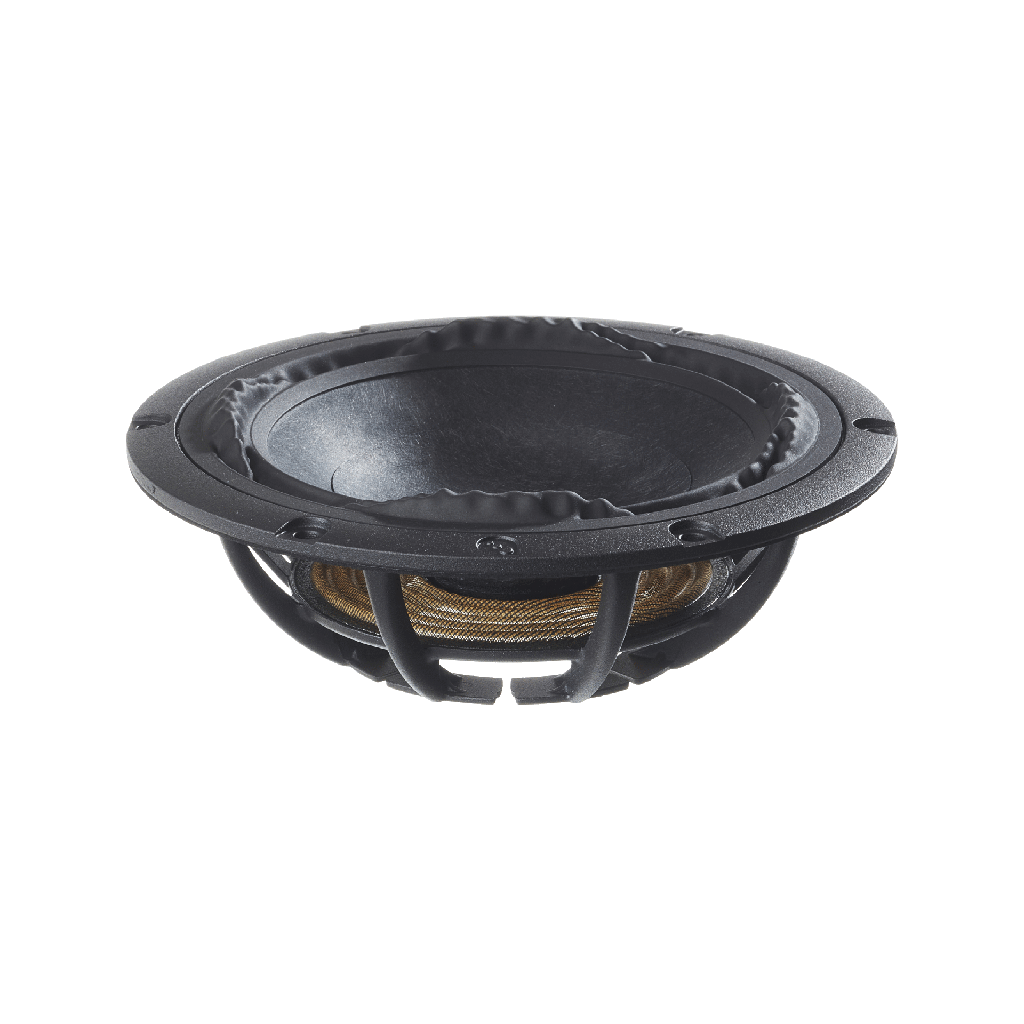

PTT6.5PR-NF1-01

https://ptt.purifi-audio.com/web/image/product.template/277/image_1920?unique=5b5928f

6.5" Ultra Low Distortion Passive Radiator

DKK 660.00 660.0 DKK DKK 660.00 VAT Excluded

DKK 660.00 VAT Excluded

Not Available For Sale

  • Type
  • Size
  • Cone material
  • Maximum mechanical excursion, Xmax
  • Mass Plug thread size
  • Resonance frequency, fs
  • Mechanical Q factor, Qms
  • Equivalent volume, Vas
  • Effective piston area, Sd
  • Effective piston diameter, D
  • Moving mass, Mms
  • Suspension compliance, Cms
  • Basket diameter
  • Cutout diameter
  • Mounting hole pattern diameter
  • Mounting hole diameter
  • Outer flange height
  • Build-in depth
  • Weight

This combination does not exist.

NOTE: VAT amount will vary based on ship-to country
Payment fees (e.g. Stripe fees) are not refundable
All transducers are made-to-order
Expect 8-12 weeks of delivery time
Terms and Conditions


Data Sheet:

Description

The 6.5” passive radiator incorporates the easily recognizable PURIFI NeutralSurround suspension in order to eliminate Surround Radiation Distortion. With its low-distortion properties, long linear stroke and option for adding mass, the driver is eminently suited as a companion to the PTT6.5X drivers especially in compact speaker construction where a traditional reflex port would limit the performance.

The PTT6.5PR-NF1-01 features:

  • Vibroacoustic optimized cone and dust cap in proprietary paper fiber mix
  • PURIFI Neutral Surround eliminates Surround Radiation Distortion (SRD)
  • 15mm one-way peak excursion with constant Sd
  • Mass Plug with M6 thread for adding extra mass
  • Designed and manufactured in Denmark

Specifications

General Specifications
Type Passive Radiator
Size 6.5in
Cone material Proprietary Fiber Mix
Maximum mechanical excursion, Xmax ±15.0mm
Mass Plug thread size M6
Thiele/Small Paramters
Resonance frequency, fs 17Hz
Mechanical Q factor, Qms 10.9
Equivalent volume, Vas 26.2L
Effective piston area, Sd 132.7cm2
Effective piston diameter, D 13.0cm
Moving mass, Mms 80.0g
Suspension compliance, Cms 1.05mm/N
Physical Dimensions
Basket diameter 176mm
Cutout diameter 145mm
Mounting hole pattern diameter 166mm
Mounting hole diameter 5.1mm
Outer flange height 3.6mm
Build-in depth 49.0mm
Weight 0.25kg
