10.0" Ultra Low Distortion Extended Woofer

DKK 5,500.00 5500.0 DKK DKK 5,500.00 VAT Excluded

DKK 5,500.00 VAT Excluded

Not Available For Sale

  • Type
  • Size
  • Nominal impedance
  • Cone material
  • Linear excursion, Xlin
  • Maximum mechanical excursion, Xmax
  • Motor efficiency factor, Beta
  • Efficiency Bandwidth Product, EBP
  • Long term maximum power
  • Rated noise power, 100h
  • DC resistance
  • Minimum impedance above resonance, Zmin
  • Frequency for minimum impedance, fmin
  • Maximum impedance, Zo
  • Voice Coil inductance @ 1kHz 0mm, Le
  • SPL @ 2.83Vrms/1m, 300-800Hz
  • SPL @ 1W/1m, 300-800Hz
  • Resonance frequency, fs
  • Mechanical Q factor, Qms
  • Electrical Q factor, Qes
  • Total Q factor, Qts
  • Equivalent volume, Vas
  • Effective piston area, Sd
  • Effective piston diameter, D
  • Force factor, Bl
  • Mechanical resistance, Rms
  • Moving mass, Mms
  • Suspension compliance, Cms
  • Typical corner frequency, sealed B2 alignment
  • Box volume, sealed B2 alignment
  • Typical corner frequency, bass reflex PTT alignment
  • Box resonance, bass reflex PTT alignment
  • Box volume, bass reflex PTT alignment
  • Port diameter, bass reflex PTT alignment
  • Port length, bass reflex PTT alignment
  • Typical corner frequency, 2xPR PTT alignment
  • Box volume, 2xPR PTT alignment
  • PR mass per PR, 2xPR PTT alignment
  • Voice Coil diameter
  • Voice Coil length
  • Voice Coil layers
  • Airgap height
  • Winding material
  • Basket diameter
  • Cutout diameter
  • Mounting hole pattern diameter
  • Mounting hole diameter
  • Magnet diameter
  • Outer flange height
  • Build-in depth
  • Weight
  • Internal volume displacement

This combination does not exist.

NOTE: VAT amount will vary based on ship-to country
Payment fees (e.g. Stripe fees) are not refundable
All transducers are made-to-order
Expect 8-12 weeks of delivery time
Terms and Conditions

Downloads

Data Sheet     3D Drawing     Frequency Response and Impedance Data


Description

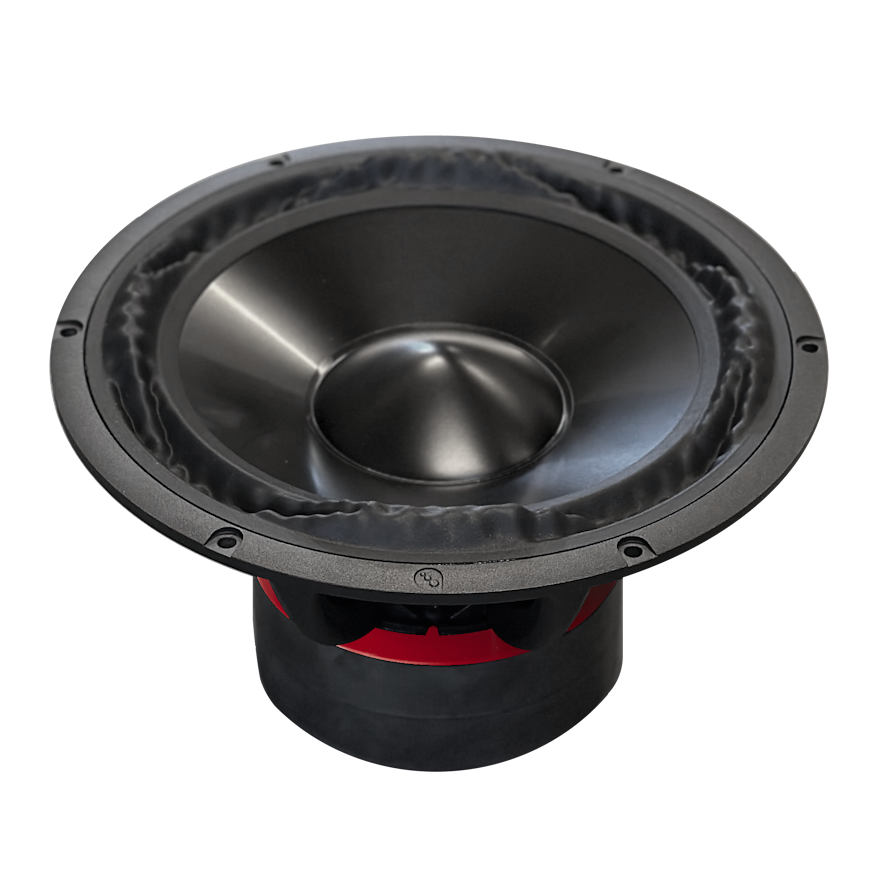

This 10.0" is a member of the ultra low distortion extended-stroke woofer family from PURIFI. The driver incorporates the easily recognizable PURIFI NeutralSurround suspension and ultra-linear PURIFI PureDrive motor system working in concert to enable record-breaking linearity specifications over an extended bandwidth.

The PTT10.0X04-NAB-01 features:

  • Vibroacoustic optimized cone and dust cap in black anodized aluminum
  • Negligible Force Factor Modulation (FFM) and Surround Radiation Distortion (SRD)
  • Ultra Low Magnetic Hysteresis Distortion (MHD)
  • "Real" long-stroke performance with distortion remaining low over full excursion
  • Designed and manufactured in Denmark

Specifications

General Specifications
Type Extended Woofer
Size 10in
Nominal impedance
Cone material Black Anodized Aluminum
Linear excursion, Xlin ±14.75mm
Maximum mechanical excursion, Xmax ±25.0mm
Motor efficiency factor, Beta 42.0 (N/A)^2/Ω
Efficiency Bandwidth Product, EBP 72.7Hz
Long term maximum power TBD
Rated noise power, 100h TBD
Electrical & Acoustical Parameter
DC resistance 3.9Ω
Minimum impedance above resonance, Zmin 4.7Ω
Frequency for minimum impedance, fmin 156Hz
Maximum impedance, Zo 65Ω
Voice Coil inductance @ 1kHz 0mm, Le 0.62mH
SPL @ 2.83Vrms/1m, 300-800Hz 88.0dB
SPL @ 1W/1m, 300-800Hz 85.7dB
Thiele/Small Paramters
Resonance frequency, fs 24Hz
Mechanical Q factor, Qms 5.5
Electrical Q factor, Qes 0.35
Total Q factor, Qts 0.33
Equivalent volume, Vas 82L
Effective piston area, Sd 360cm2
Effective piston diameter, D 21.4cm
Force factor, Bl 12.8N/A
Mechanical resistance, Rms 2.69kg/s
Moving mass, Mms 98.0g
Suspension compliance, Cms 0.44mm/N
Typical Box Tunings
Typical corner frequency, sealed B2 alignment 51.4Hz
Box volume, sealed B2 alignment 22.8L
Typical corner frequency, bass reflex PTT alignment 26.2Hz
Box resonance, bass reflex PTT alignment 28.2Hz
Box volume, bass reflex PTT alignment 63.9L
Port diameter, bass reflex PTT alignment 10.9cm
Port length, bass reflex PTT alignment 55.4cm
Typical corner frequency, 2xPR PTT alignment 29.4Hz
Box volume, 2xPR PTT alignment 52.3L
PR mass per PR, 2xPR PTT alignment 251.6g
Voice Coil Properties
Voice Coil diameter 52mm
Voice Coil length 34.5mm
Voice Coil layers 4
Airgap height 5.0mm
Winding material CCAW
Physical Dimensions
Basket diameter 269mm
Cutout diameter 242mm
Mounting hole pattern diameter 257.5mm
Mounting hole diameter 5.2mm
Magnet diameter 140mm
Outer flange height 5.0mm
Build-in depth 145mm
Weight 6.0kg
Internal volume displacement 1.40L
