PTT5.25M08-NAA-05

https://ptt.purifi-audio.com/web/image/product.template/3071/image_1920?unique=11c0c14

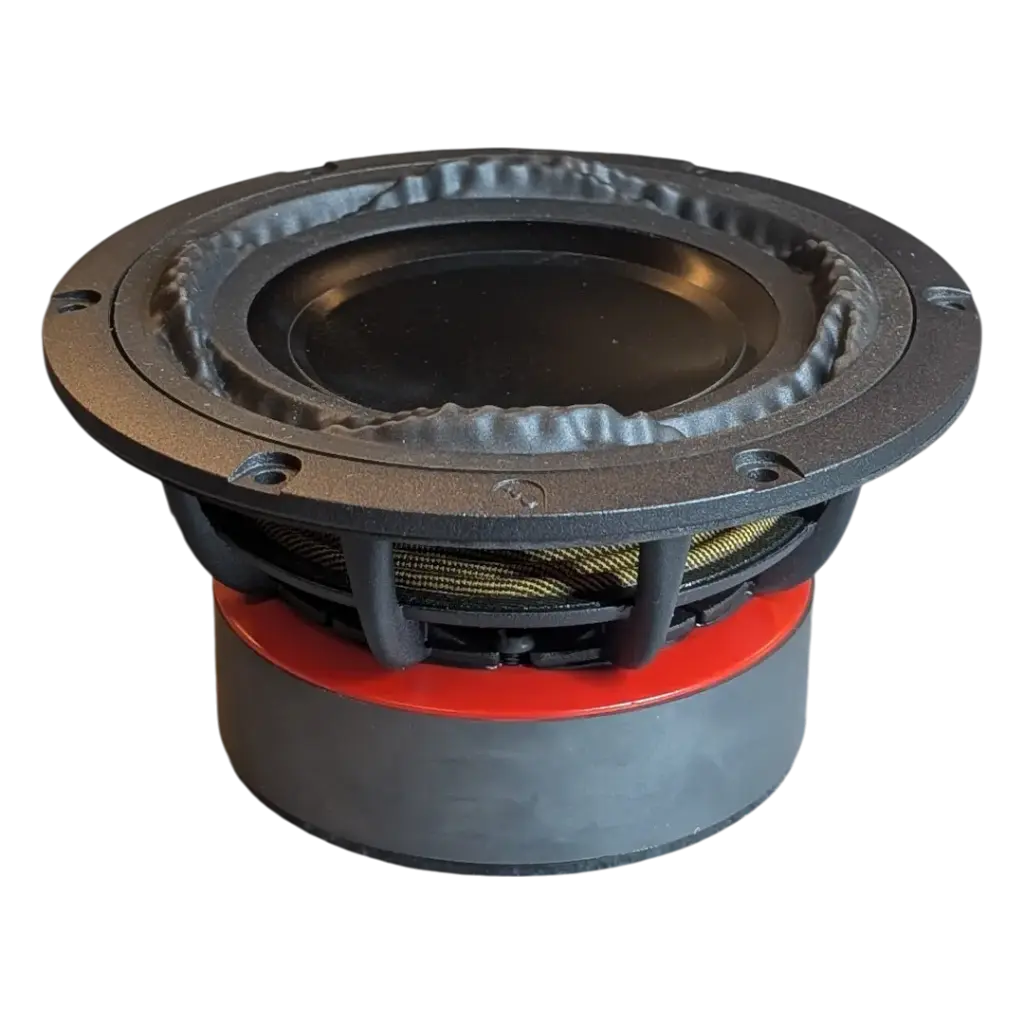

5.25" Ultra Low Distortion Midrange with inverted aluminium dustcap

DKK 2,400.00 2400.0 DKK DKK 2,400.00 Tax Excluded

OEM Only

  • Type
  • Size
  • Nominal impedance
  • Cone material
  • Linear excursion, Xlin
  • Maximum mechanical excursion, Xmax
  • Motor efficiency factor, Beta
  • Efficiency Bandwidth Product, EBP
  • Long term maximum power
  • Rated noise power, 100h
  • DC resistance
  • Powertest crossover
  • Minimum impedance above resonance, Zmin
  • Frequency for minimum impedance, fmin
  • Maximum impedance, Zo
  • Voice Coil inductance @ 1kHz 0mm, Le
  • SPL @ 2.83Vrms/1m, 1000-2800Hz
  • SPL @ 1W/1m, 1000-2800Hz
  • Resonance frequency, fs
  • Mechanical Q factor, Qms
  • Electrical Q factor, Qes
  • Total Q factor, Qts
  • Equivalent volume, Vas
  • Effective piston area, Sd
  • Effective piston diameter, D
  • Force factor, Bl
  • Mechanical resistance, Rms
  • Moving mass, Mms
  • Suspension compliance, Cms
  • Voice Coil diameter
  • Voice Coil length
  • Voice Coil layers
  • Airgap height
  • Winding material
  • Basket diameter
  • Cutout diameter
  • Mounting hole pattern diameter
  • Mounting hole diameter
  • Magnet diameter
  • Outer flange height
  • Build-in depth
  • Weight
  • Typical corner frequency, sealed B2 alignment
  • Box volume, sealed B2 alignment
  • Internal volume displacement

This combination does not exist.

Type Midrange
Size 5.25in
Nominal impedance 8Ω
Cone material Black Anodized Aluminum
Linear excursion, Xlin ±2.9mm
Maximum mechanical excursion, Xmax ±14.0mm
Motor efficiency factor, Beta 14.3 (N*A)^2/Ω
Efficiency Bandwidth Product, EBP 141.4Hz
Long term maximum power 200W
Rated noise power, 100h 70W
Powertest crossover 2nd order high pass Butterworth @ 200Hz
DC resistance 6.3Ω
Minimum impedance above resonance, Zmin 6.9Ω
Frequency for minimum impedance, fmin 410Hz
Maximum impedance, Zo 139Ω
Voice Coil inductance @ 1kHz 0mm, Le 0.35mH
SPL @ 2.83Vrms/1m, 1000-2800Hz 85.2dB
SPL @ 1W/1m, 1000-2800Hz 84.6dB
Resonance frequency, fs 41Hz
Mechanical Q factor, Qms 6.3
Electrical Q factor, Qes 0.30
Total Q factor, Qts 0.29
Equivalent volume, Vas 9.4L
Effective piston area, Sd 84.9cm2
Effective piston diameter, D 10.4cm
Force factor, Bl 9.5N/A
Mechanical resistance, Rms 0.68kg/s
Moving mass, Mms 16.8g
Suspension compliance, Cms 0.92mm/N
Typical corner frequency, sealed B2 alignment 100.0Hz
Box volume, sealed B2 alignment 1.9L
Voice Coil diameter 39mm
Voice Coil length 9.8mm
Voice Coil layers 4
Airgap height 4.0mm
Winding material CCAW
Basket diameter 147mm
Cutout diameter 121mm
Mounting hole pattern diameter 138mm
Mounting hole diameter 4.2mm
Magnet diameter 100mm
Outer flange height 3.6mm
Build-in depth 75.0mm
Weight 1.75kg
Internal volume displacement 0.30L
Contact Us

NOTE: VAT amount will vary based on ship-to country
Payment fees (e.g. Stripe fees) are not refundable
All transducers are made-to-order
Expect 8-12 weeks of delivery time
Terms and Conditions

Share

Description

The 5.25” midrange driver has been optimized for midrange use and achieves higher sensitivity as compared to the X version of the PTT5.25 product family. It incorporates the easily recognizable PURIFI NeutralSurround suspension and ultra-linear motor system PURIFI PureDrive technology resulting in astounding performance with ultra clean distortion specifications.

The PTT5.25M08-NAA-05 features:

  • Vibroacoustic optimized cone and dust cap in black anodized aluminum
  • Negligible Force Factor Modulation (FFM) and Surround Radiation Distortion (SRD)
  • Ultra Low Magnetic Hysteresis Distortion (MHD)
  • Dedicated midrange driver with enhanced efficiency
  • Designed and manufactured in Denmark
