PTT5.25PR-NA2-01

https://ptt.purifi-audio.com/web/image/product.template/3021/image_1920?unique=59304e8

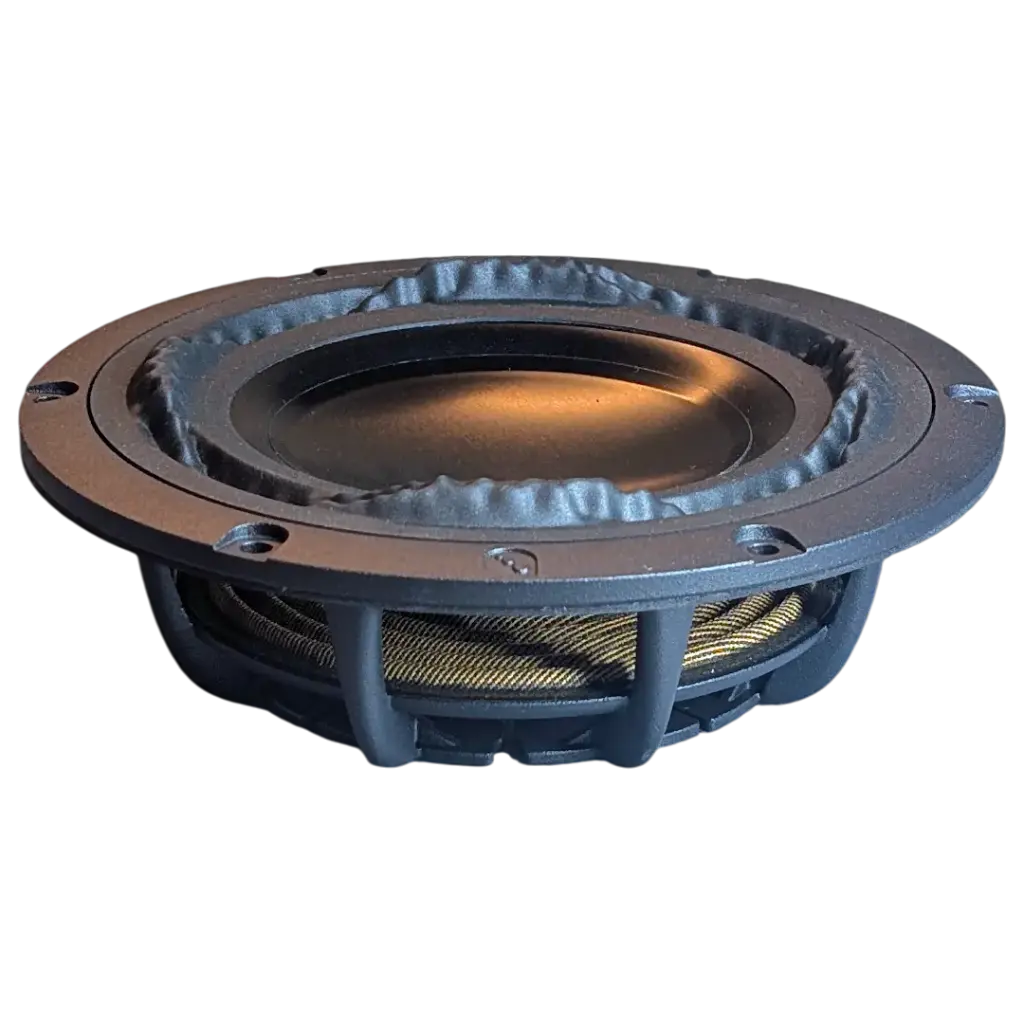

5.25" Passive radiator with alu cone, inverted dust cap and total moving mass of 52g

DKK 680.00 680.0 DKK DKK 680.00 Tax Excluded

OEM Only

  • Type
  • Size
  • Cone material
  • Maximum mechanical excursion, Xmax
  • Mass Plug thread size
  • Resonance frequency, fs
  • Mechanical Q factor, Qms
  • Equivalent volume, Vas
  • Effective piston area, Sd
  • Effective piston diameter, D
  • Mechanical resistance, Rms
  • Moving mass, Mms
  • Suspension compliance, Cms
  • Basket diameter
  • Cutout diameter
  • Mounting hole pattern diameter
  • Mounting hole diameter
  • Outer flange height
  • Build-in depth
  • Weight

This combination does not exist.

Type Passive Radiator
Size 5.25in
Cone material Black Anodized Aluminum
Maximum mechanical excursion, Xmax ±14.0mm
Mass Plug thread size M6
Resonance frequency, fs 21Hz
Mechanical Q factor, Qms 8.3
Equivalent volume, Vas 11.7L
Effective piston area, Sd 84.9cm2
Effective piston diameter, D 10.4cm
Mechanical resistance, Rms 0.81kg/s
Moving mass, Mms 52g
Suspension compliance, Cms 1.15mm/N
Basket diameter 147mm
Cutout diameter 121mm
Mounting hole pattern diameter 138mm
Mounting hole diameter 4.2mm
Outer flange height 3.6mm
Build-in depth 38.5mm
Weight 0.25kg
Contact Us

NOTE: VAT amount will vary based on ship-to country
Payment fees (e.g. Stripe fees) are not refundable
All transducers are made-to-order
Expect 8-12 weeks of delivery time
Terms and Conditions

Share

Description

The 5.25” passive radiator incorporates the easily recognizable PURIFI NeutralSurround suspension in order to eliminate Surround Radiation Distortion. With its low-distortion properties, long linear stroke and option for adding mass, the driver is eminently suited as a companion to the PTT5.25X drivers especially in compact speaker construction where a traditional reflex port would limit the performance.

The PTT5.25PR-NF2-01 features:

  • Vibroacoustic optimized cone and dust cap in black anodized aluminium
  • PURIFI Neutral Surround eliminates Surround Radiation Distortion (SRD)
  • 14mm one-way peak excursion with constant Sd
  • Mass Plug with M6 thread for adding extra mass
  • Designed and manufactured in Denmark
