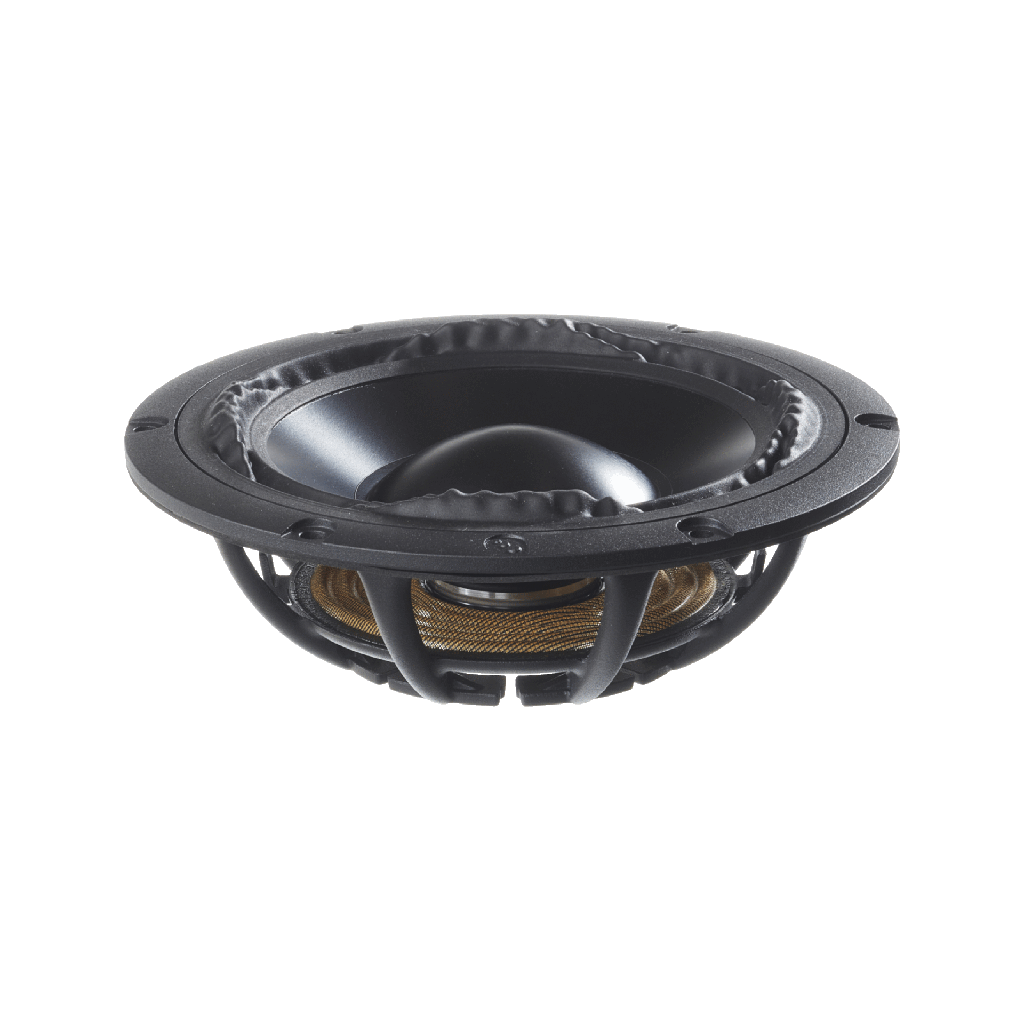

PTT6.5PR-NA2-03
6.5" Passive radiator with alu cone, 85g moving mass
Description
The 6.5” passive radiator incorporates the easily recognizable PURIFI NeutralSurround suspension in order to eliminate Surround Radiation Distortion. With its low-distortion properties, long linear stroke and option for adding mass, the driver is eminently suited as a companion to the PTT6.5X drivers especially in compact speaker construction where a traditional reflex port would limit the performance.
The PTT6.5PR-NA2-03 features:
- Vibroacoustic optimized cone and dust cap in black anodized aluminum
- PURIFI Neutral Surround eliminates Surround Radiation Distortion (SRD)
- 15mm one-way peak excursion with constant Sd
- Mass Plug with M6 thread for adding extra mass
- Designed and manufactured in Denmark
Specifications
| General Specifications | |
|---|---|
| Type | Passive Radiator |
| Size | 6.5in |
| Cone material | Black Anodized Aluminum |
| Maximum mechanical excursion, Xmax | ±15.0mm |
| Mass Plug thread size | M6 |
| Thiele/Small Paramters | |
|---|---|
| Resonance frequency, fs | 19Hz |
| Mechanical Q factor, Qms | 13.1 |
| Equivalent volume, Vas | 20.5L |
| Effective piston area, Sd | 132.7cm2 |
| Effective piston diameter, D | 13.0cm |
| Mechanical resistance, Rms | 0.78kg/s |
| Moving mass, Mms | 85.0g |
| Suspension compliance, Cms | 0.82mm/N |
| Physical Dimensions | |
|---|---|
| Basket diameter | 176mm |
| Cutout diameter | 148mm |
| Mounting hole pattern diameter | 166mm |
| Mounting hole diameter | 5.2mm |
| Outer flange height | 3.6mm |
| Build-in depth | 49.0mm |
| Weight | 0.25kg |
