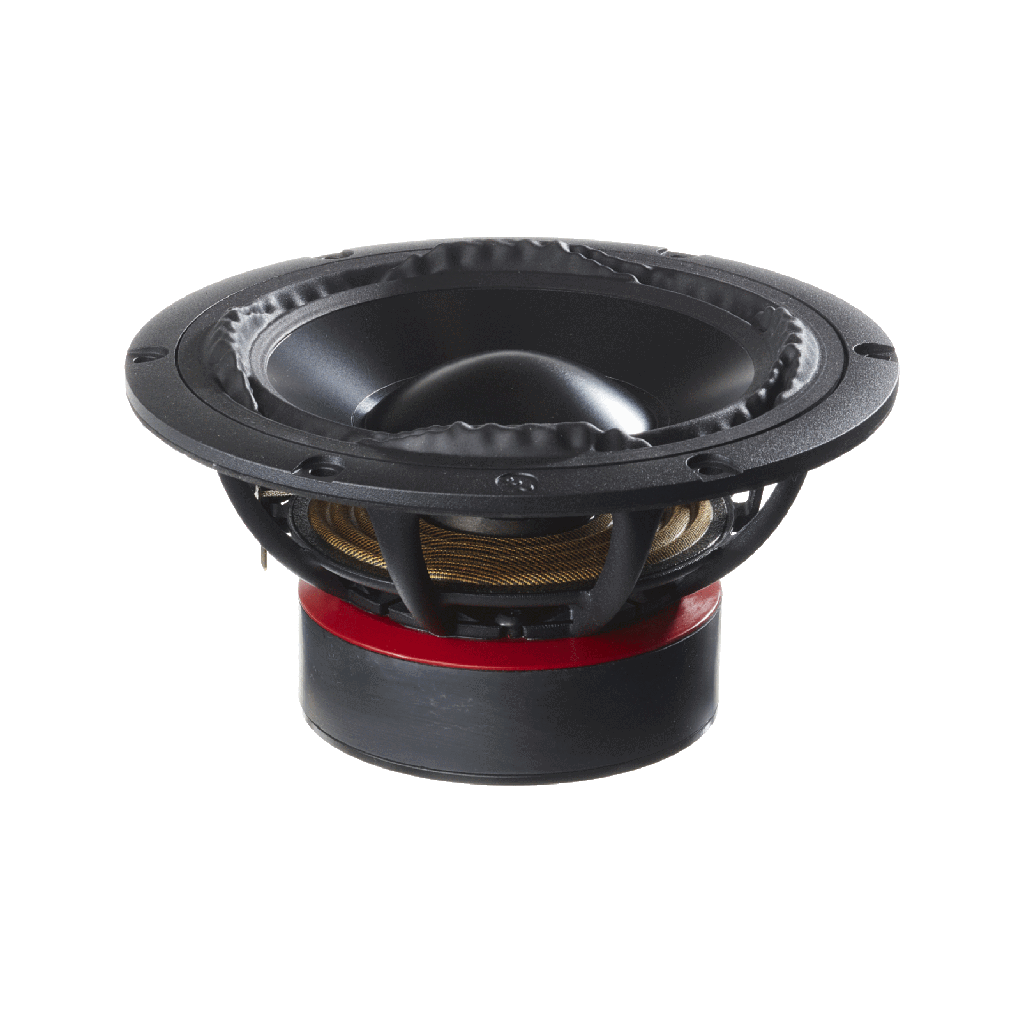

6.5" Ultra Low Distortion Woofer

DKK 3,000.00 3000.0 DKK DKK 3,000.00 VAT Excluded

DKK 3,000.00 VAT Excluded

Not Available For Sale

  • Type
  • Size
  • Nominal impedance
  • Cone material
  • Linear excursion, Xlin
  • Maximum mechanical excursion, Xmax
  • Motor efficiency factor, Beta
  • Efficiency Bandwidth Product, EBP
  • Long term maximum power
  • Rated noise power, 100h
  • DC resistance
  • Minimum impedance above resonance, Zmin
  • Frequency for minimum impedance, fmin
  • Maximum impedance, Zo
  • Voice Coil inductance @ 1kHz 0mm, Le
  • SPL @ 2.83Vrms/1m, 300-800Hz
  • SPL @ 1W/1m, 300-800Hz
  • Resonance frequency, fs
  • Mechanical Q factor, Qms
  • Electrical Q factor, Qes
  • Total Q factor, Qts
  • Equivalent volume, Vas
  • Effective piston area, Sd
  • Effective piston diameter, D
  • Force factor, Bl
  • Mechanical resistance, Rms
  • Moving mass, Mms
  • Suspension compliance, Cms
  • Typical corner frequency, sealed B2 alignment
  • Box volume, sealed B2 alignment
  • Typical corner frequency, bass reflex PTT alignment
  • Box resonance, bass reflex PTT alignment
  • Box volume, bass reflex PTT alignment
  • Port diameter, bass reflex PTT alignment
  • Port length, bass reflex PTT alignment
  • Typical corner frequency, 2xPR PTT alignment
  • Box volume, 2xPR PTT alignment
  • PR mass per PR, 2xPR PTT alignment
  • Voice Coil diameter
  • Voice Coil length
  • Voice Coil layers
  • Airgap height
  • Winding material
  • Basket diameter
  • Cutout diameter
  • Mounting hole pattern diameter
  • Mounting hole diameter
  • Magnet diameter
  • Outer flange height
  • Build-in depth
  • Weight
  • Internal volume displacement

This combination does not exist.

NOTE: VAT amount will vary based on ship-to country
Payment fees (e.g. Stripe fees) are not refundable
All transducers are made-to-order
Expect 8-12 weeks of delivery time
Terms and Conditions

Downloads

Data Sheet    3D Drawing    Frequency Response and Impedance Data


Description

This 6.5" is a member of the ultra low distortion woofer family from PURIFI.  Compared to the renowned PTT6.5X family, the W-version has higher sensitivity and is well suited for applications that doesn't require extended excursion.

The driver incorporates the easily recognizable PURIFI NeutralSurround suspension and ultra-linear motor system PURIFI PureDrive technology working in concert to elevate performance to a whole new level despite of it’s compact size.

The PTT6.5W04-NAA-08 features:

  • Vibroacoustic optimized cone and dust cap in proprietary paper fiber mix
  • Negligible Force Factor Modulation (FFM) and Surround Radiation Distortion (SRD)
  • Ultra Low Magnetic Hysteresis Distortion (MHD)
  • Best mix of volume displacement and midrange efficiency
  • Uncompromised midrange performance
  • Designed and manufactured in Denmark


Specifications

General Specifications
Type Woofer
Size 6.5in
Nominal impedance
Cone material Black Anodized Aluminum
Linear excursion, Xlin ±5.9mm
Maximum mechanical excursion, Xmax ±14.5mm
Motor efficiency factor, Beta 16.5 (N/A)^2/Ω
Efficiency Bandwidth Product, EBP 110.0Hz
Long term maximum power 250W
Rated noise power, 100h 80W
Electrical & Acoustical Parameter
DC resistance 3.6Ω
Minimum impedance above resonance, Zmin 4.1Ω
Frequency for minimum impedance, fmin 268Hz
Maximum impedance, Zo 75Ω
Voice Coil inductance @ 1kHz 0mm, Le 0.33mH
SPL @ 2.83Vrms/1m, 300-800Hz 89.0dB
SPL @ 1W/1m, 300-800Hz 86.1dB
Thiele/Small Paramters
Resonance frequency, fs 33Hz
Mechanical Q factor, Qms 6.2
Electrical Q factor, Qes 0.31
Total Q factor, Qts 0.3
Equivalent volume, Vas 23.3L
Effective piston area, Sd 132.7cm2
Effective piston diameter, D 13.0cm
Force factor, Bl 7.7N/A
Mechanical resistance, Rms 0.83kg/s
Moving mass, Mms 24.5g
Suspension compliance, Cms 0.93mm/N
Typical Box Tunings
Typical corner frequency, sealed B2 alignment 77.8Hz
Box volume, sealed B2 alignment 5.1L
Typical corner frequency, bass reflex PTT alignment 40.6Hz
Box resonance, bass reflex PTT alignment 43.1Hz
Box volume, bass reflex PTT alignment 14.3L
Port diameter, bass reflex PTT alignment 5.2cm
Port length, bass reflex PTT alignment 23.9cm
Typical corner frequency, 2xPR PTT alignment 44.3Hz
Box volume, 2xPR PTT alignment 12.2L
PR mass per PR, 2xPR PTT alignment 61.0g
Voice Coil Properties
Voice Coil diameter 39mm
Voice Coil length 15.8mm
Voice Coil layers 4
Airgap height 4.0mm
Winding material CCAW
Physical Dimensions
Basket diameter 176mm
Cutout diameter 148mm
Mounting hole pattern diameter 166mm
Mounting hole diameter 5.2mm
Magnet diameter 100mm
Outer flange height 3.6mm
Build-in depth 85.2mm
Weight 1.75kg
Internal volume displacement 0.31L
