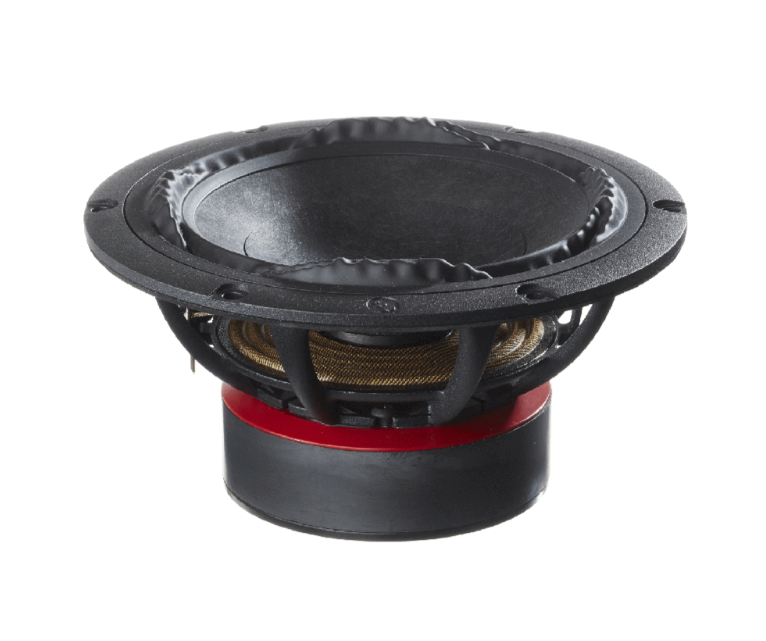

PTT6.5X04-NFA-06
6.5" Ultra Low Distortion Extended Woofer. Replacement for PTT6.5X04-NFA-01
| Type | Extended Woofer |
| Size | 6.5in |
| Nominal impedance | 4Ω |
| Cone material | Proprietary Fiber Mix |
| Linear excursion, Xlin | ±9.8mm |
| Maximum mechanical excursion, Xmax | ±14.5mm |
| Motor efficiency factor, Beta | 17.3 (N/A)^2/Ω |
| Efficiency Bandwidth Product, EBP | 103.4Hz |
| Long term maximum power | 250W |
| Rated noise power, 100h | 80W |
| DC resistance | 3.6Ω |
| Minimum impedance above resonance, Zmin | 4.3Ω |
| Frequency for minimum impedance, fmin | 345Hz |
| Maximum impedance, Zo | 93Ω |
| Voice Coil inductance @ 1kHz 0mm, Le | 0.38mH |
| SPL @ 2.83Vrms/1m, 300-800Hz | 88.6dB |
| SPL @ 1W/1m, 300-800Hz | 85.8dB |
| Resonance frequency, fs | 30Hz |
| Mechanical Q factor, Qms | 7.3 |
| Electrical Q factor, Qes | 0.30 |
| Total Q factor, Qts | 0.29 |
| Equivalent volume, Vas | 25.9L |
| Effective piston area, Sd | 132.7cm2 |
| Effective piston diameter, D | 13.0cm |
| Force factor, Bl | 7.9N/A |
| Mechanical resistance, Rms | 0.70kg/s |
| Moving mass, Mms | 27.4g |
| Suspension compliance, Cms | 1.04mm/N |
| Typical corner frequency, sealed B2 alignment | 73.1Hz |
| Box volume, sealed B2 alignment | 5.2L |
| Typical corner frequency, bass reflex PTT alignment | 38.5Hz |
| Box resonance, bass reflex PTT alignment | 40.7Hz |
| Box volume, bass reflex PTT alignment | 14.6L |
| Port diameter, bass reflex PTT alignment | 6.5cm |
| Port length, bass reflex PTT alignment | 41.0cm |
| Typical corner frequency, 2xPR PTT alignment | 41.6Hz |
| Box volume, 2xPR PTT alignment | 12.6L |
| PR mass per PR, 2xPR PTT alignment | 67.4g |
| Voice Coil diameter | 39mm |
| Voice Coil length | 23.6mm |
| Voice Coil layers | 4 |
| Airgap height | 4.0mm |
| Winding material | CCAW |
| Basket diameter | 176mm |
| Cutout diameter | 148mm |
| Mounting hole pattern diameter | 166mm |
| Mounting hole diameter | 5.2mm |
| Magnet diameter | 100mm |
| Outer flange height | 3.6mm |
| Build-in depth | 85.2mm |
| Weight | 1.75kg |
| Internal volume displacement | 0.31L |
Description
This 6.5" is a member of the ultra low distortion extended-stroke woofer family from PURIFI. The driver incorporates the easily recognizable PURIFI NeutralSurround suspension and ultra-linear motor system PURIFI PureDrive technology working in concert to elevate performance to a whole new level despite of it’s compact size.
The PTT6.5X04-NFA-06 features:
- Vibroacoustic optimized cone and dust cap in proprietary paper fiber mix
- Negligible Force Factor Modulation (FFM) and Surround Radiation Distortion (SRD)
- Ultra Low Magnetic Hysteresis Distortion (MHD)
- "Real" long-stroke performance with distortion remaining low over full excursion
- Uncompromised midrange performance
- Designed and manufactured in Denmark
PTT6.5X04-NFA-06 is the next iteration of PTT6.5X04-NFA-01, featuring a reinforced chassis design with a cutout of 148mm.
