Description

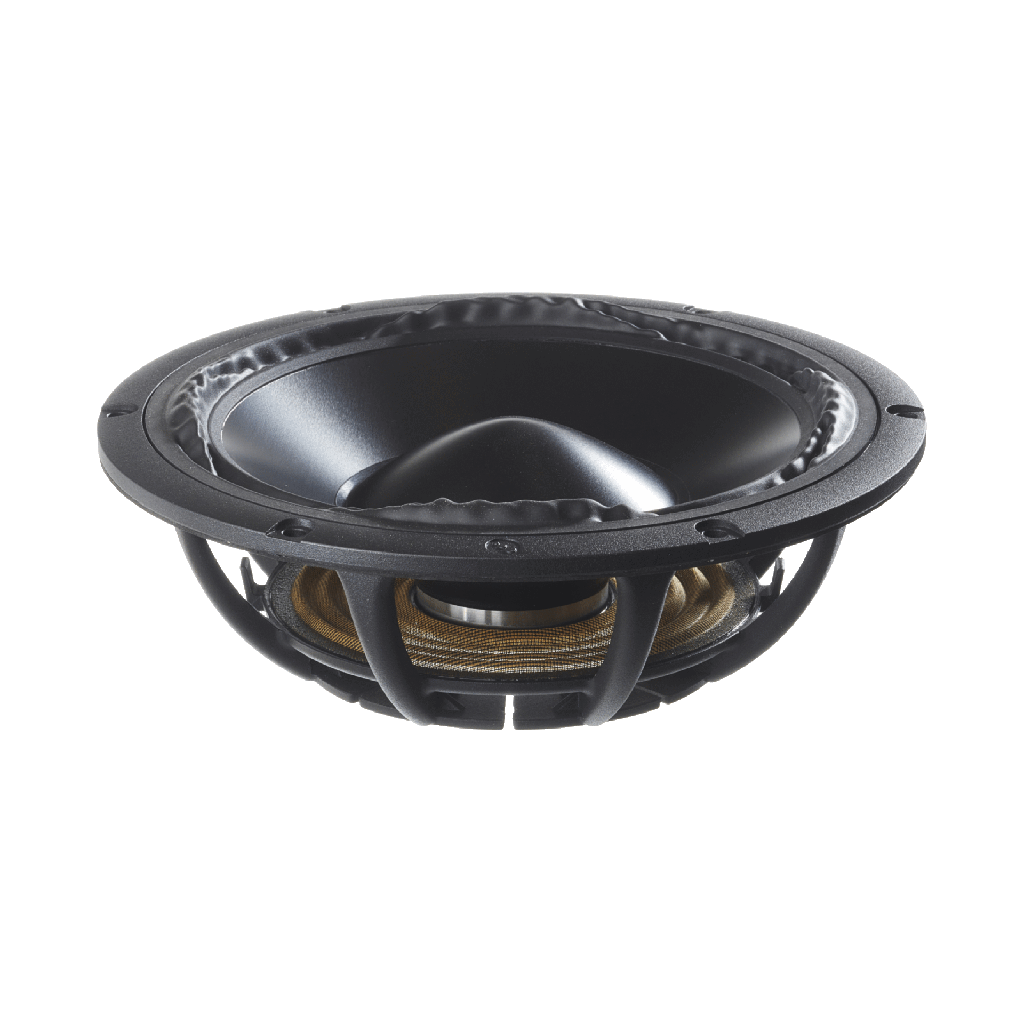

The 8.0” passive radiator incorporates the easily recognizable PURIFI NeutralSurround suspension in order to eliminate Surround Radiation Distortion. With its low-distortion properties, long linear stroke and option for adding mass, the driver is eminently suited as a companion to the PTT8.0X drivers especially in compact speaker construction where a traditional reflex port would limit the performance.
The PTT8.0PR-NA2-01 features:
- Vibroacoustic optimized cone and dust cap in black anodized aluminum
- PURIFI Neutral Surround eliminates Surround Radiation Distortion (SRD)
- 15mm one-way peak excursion with constant Sd
- Mass Plug with M6 thread for adding extra mass
- Designed and manufactured in Denmark
Specifications
| General Specifications | |
|---|---|
| Type | Passive Radiator |
| Size | 8in |
| Cone material | Black Anodized Aluminum |
| Maximum mechanical excursion, Xmax | ±15.0mm |
| Mass Plug thread size | M6 |
| Thiele/Small Paramters | |
|---|---|
| Resonance frequency, fs | 14Hz |
| Mechanical Q factor, Qms | 9.4 |
| Equivalent volume, Vas | 73.0L |
| Effective piston area, Sd | 235.1cm2 |
| Effective piston diameter, D | 17.3cm |
| Moving mass, Mms | 132.0g |
| Suspension compliance, Cms | 0.93mm/N |
| Physical Dimensions | |
|---|---|
| Basket diameter | 221mm |
| Cutout diameter | 193mm |
| Mounting hole pattern diameter | 210mm |
| Mounting hole diameter | 5.2mm |
| Outer flange height | 5.0mm |
| Build-in depth | 62.5mm |
| Weight | 0.50kg |
